Part Number: 1238-24-28

SAE J518 C61 / ISO 6162-1 > Flat Face > Socket Weld for Tube > Carbon Steel > 1238-24-28

1238-24-28

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
Flat Face
Port Style
Socket Weld for Tube
Material
Carbon Steel
Flange Size
24    1 1/2 inch    38 mm
Port Size
28    1 3/4 inch

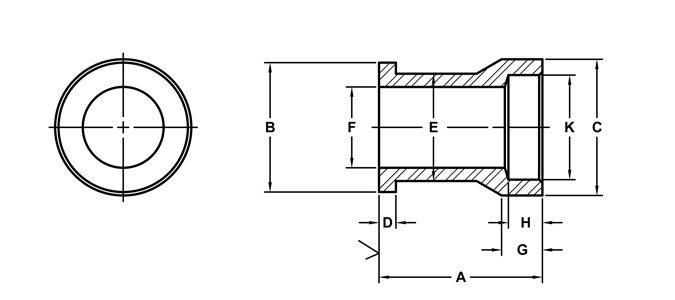

1238-24-28
A
2.75
B
2.38
C
2.50
D
0.315
E
1.970
G
0.50
F
1.50
K
1.760
H
0.50
