FIND CATALOG PAGE

Part Number: 1102-08-00

SAE J518 C61 / ISO 6162-1 > Flat Face > Blind (Blanking) > In-Line > Carbon Steel > Imperial (Inch) > 1102-08-00

1102-08-00

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
Flat Face
Port Style
Blind (Blanking)
Geometry
In-Line
Material
Carbon Steel
Mounting
Imperial (Inch)
Pad Size
08    1/2 inch    13 mm
Port Size
00    NA inch

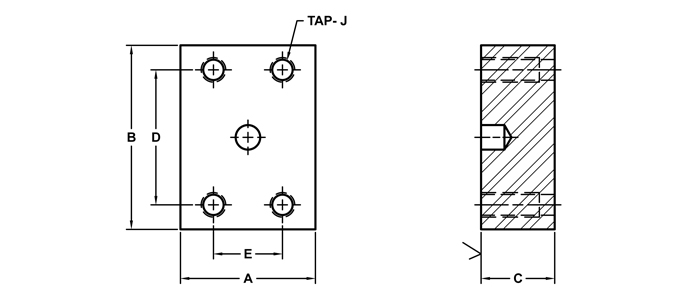

1102-08-00
A
1.50
B
2.12
C
0.75
D
1.500
E
0.688
J
5/16-18
