Part Number: 1291-56-56M16

SAE J518 C61 / ISO 6162-1 > O-ring Face/Flat Face > NPTF Threaded > Carbon Steel > Metric (mm) > 1291-56-56M16

1291-56-56M16

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
O-ring Face/Flat Face
Gauge Port Style
NPTF Threaded
Material
Carbon Steel
Mounting
Metric (mm)
Pad Size
56    3 1/2 inch    89 mm
Gauge Port Size
-    (#6) 3/8 inch

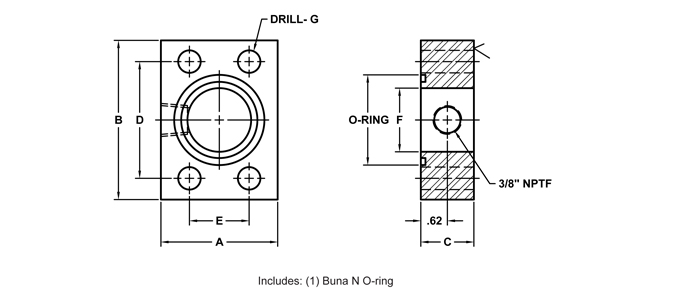

1291-56-56M16
A
5.00
B
6.00
C
1.25
D
4.750
E
2.750
G
0.67
F
3.44
O-Ring
241
FootNotes
500 PSI Max [2.5MPa Max]
