Part Number: 1211-32-32

SAE J518 C61 / ISO 6162-1 > Flat Face/Flat Face > None > Carbon Steel > Imperial (Inch) > 1211-32-32

1211-32-32

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
Flat Face/Flat Face
Gauge Port Style
None
Material
Carbon Steel
Mounting
Imperial (Inch)
Extras
1/16" Thick
Pad Size
32    2 inch    51 mm
Gauge Port Size
-    None inch

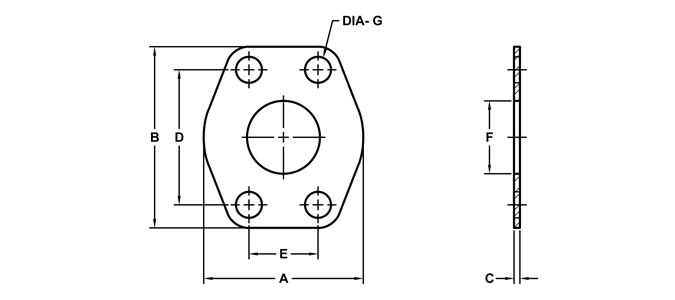

1211-32-32
A
3.81
B
4.00
C
0.06
D
3.062
E
1.688
G
0.53
F
1.94
