Part Number: 1267-04-04

NPTF Threaded > Carbon Steel > 1267-04-04

1267-04-04

  Email This Link

View Catalog Page
Port 1 Style
SAE J1926 (ORB) Threaded
Port 2 Style
NPTF Threaded
Material
Carbon Steel
Port 1 Size
04    1/4 inch
Port 2 Size
04    1/4 inch

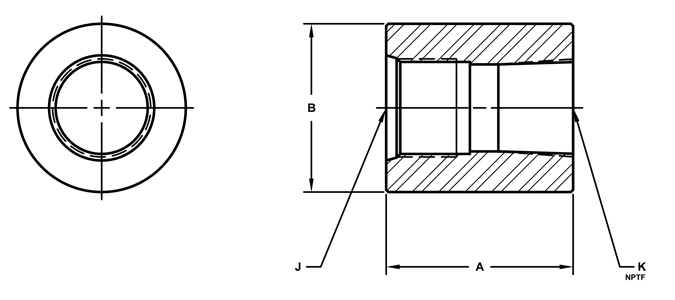

1267-04-04
A
1.25
B
1.00
J
7/16-20
K
1/4
FootNotes
NOTE: The pressure rating of the assembly should NOT exceed the lower of the flange pad or the fitting. Check the fitting manufacturer for details.
