Part Number: 1101-08-06

SAE J518 C61 / ISO 6162-1 > O-ring Face > Socket Weld for Pipe > In-Line > Carbon Steel > Imperial (Inch) > 1101-08-06

1101-08-06

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
O-ring Face
Port Style
Socket Weld for Pipe
Geometry
In-Line
Material
Carbon Steel
Mounting
Imperial (Inch)
Pad Size
08    1/2 inch    13MM
Port Size
06    3/8 inch

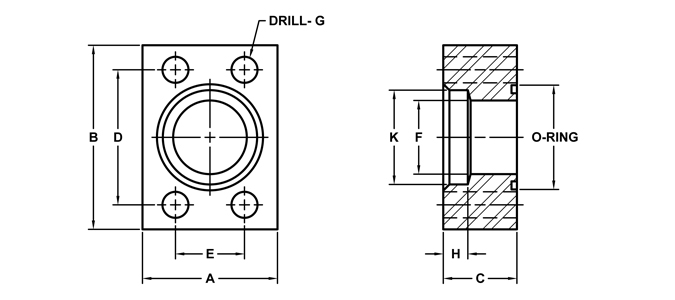

1101-08-06
A
1.50
B
2.12
C
0.75
D
1.500
E
0.688
G
0.34
F
0.44
K
0.690
H
0.38
Mounting Kit (sold separately)
MK 501
Screw Size
5/16-18 x 1.25 SHCS
O-Ring
210
FootNotes
This item is available and may be in stock; however, it is a non-catalog item.
