FIND CATALOG PAGE

Part Number: 1102-08-04

SAE J518 C61 / ISO 6162-1 > Flat Face > Socket Weld for Pipe > In-Line > Carbon Steel > Imperial (Inch) > 1102-08-04

1102-08-04

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
Flat Face
Port Style
Socket Weld for Pipe
Geometry
In-Line
Material
Carbon Steel
Mounting
Imperial (Inch)
Pad Size
08    1/2 inch    13MM
Port Size
04    1/4 inch

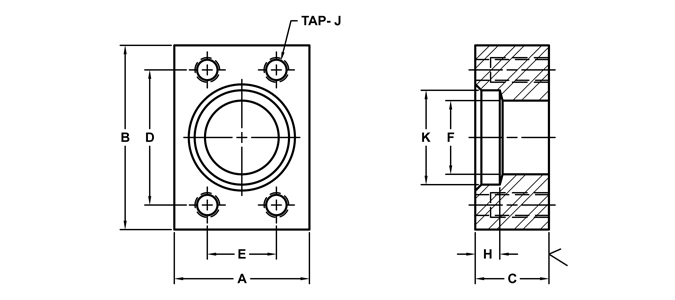

1102-08-04
A
1.50
B
2.12
C
0.75
D
1.500
E
0.688
J
5/16-18
F
0.31
K
0.562
H
0.38
FootNotes
This item is available and may be in stock; however, it is a non-catalog item.
