Part Number: 1154-12-12

SAE J518 C61 / ISO 6162-1 > Flat Face > NPTF Threaded > Branch Tee > Carbon Steel > Imperial (Inch) > 1154-12-12

1154-12-12

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
Flat Face
Port Style
NPTF Threaded
Geometry
Branch Tee
Material
Carbon Steel
Mounting
Imperial (Inch)
Pad Size
12    3/4 inch    19 mm
Port Size
12    3/4 inch

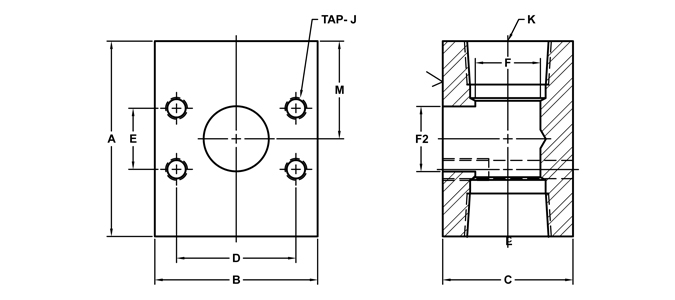

1154-12-12
A
3.00
B
2.62
C
1.70
D
1.875
E
0.875
J
3/8-16
F
0.92
K
3/4
M
1.50
F2
0.75
