Part Number: 1275-24-24M12

SAE J518 C61 / ISO 6162-1 > O-ring Face/O-ring Face > None > Carbon Steel > Metric (mm) > 1275-24-24M12

1275-24-24M12

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
O-ring Face/O-ring Face
Gauge Port Style
None
Material
Carbon Steel
Mounting
Metric (mm)
Pad Size
24    1 1/2 inch    38 mm
Gauge Port Size
-    None inch

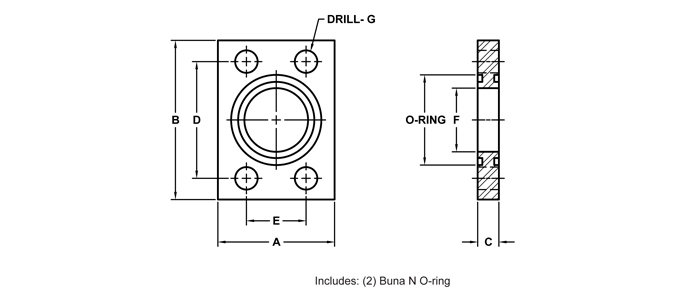

1275-24-24M12
A
2.75
B
3.75
C
0.50
D
2.750
E
1.406
G
0.51
F
1.50
O-Ring
225
